Ground your AI in verified Webix code, not training data.
A streamable HTTP MCP server that gives your AI assistant a unified, searchable knowledge base of
Webix snippets, API reference, and SoftCreator Proto-UI extensions — all rewritten to use SC-prefixed
view names by default.
AI assistants hallucinate Webix code. This stops it.
Webix 6.4.6 is old enough that LLMs mix it up with newer versions, invent properties, and emit plain
view:"datatable" where SoftCreator codebases require view:"scdatatable".
The Webix MCP server replaces guesswork with lookups against a single, locally-built database.
⚙
Faithful code generation
View names emitted by the AI match what the SoftCreator runtime expects. No manual rename pass after every prompt.
📖
API-grounded answers
Method signatures, allowed values, and event names are answered from indexed documentation rather than guessed.
🔗
SC knowledge first-class
Looking up ui.datatable automatically surfaces scdatatable: its mixins, defaults, and custom methods.
How it works
A single index over three knowledge sources.
The build pipeline harvests, parses, and normalizes three independent sources into one SQLite database.
The runtime server exposes that database to any MCP-compatible client over streamable HTTP.
flowchart LR
S1[Webix snippets snippet.webix.com]
S2[Webix docs docs.webix.com]
S3[SoftCreator Proto-UI sources]
B[Builder ETL pipeline]
DB[(webix_kb.sqlite FTS5 indexes)]
SRV[Server FastAPI + MCP]
C1[Cursor / IDE]
C2[External MCP clients]
S1 --> B
S2 --> B
S3 --> B
B --> DB
DB --> SRV
SRV --> C1
SRV --> C2
classDef src fill:#dcf5dc,stroke:#4caf50,color:#2c3e2e;
classDef etl fill:#fff8e1,stroke:#f57f17,color:#2c3e2e;
classDef rt fill:#e3f2fd,stroke:#1976d2,color:#2c3e2e;
classDef db fill:#bcffb4,stroke:#008807,color:#2c3e2e;
classDef cli fill:#f5fff2,stroke:#5a7a5d,color:#2c3e2e;
class S1,S2,S3 src;
class B etl;
class DB db;
class SRV rt;
class C1,C2 cli;
Architecture overview — three sources merge into one searchable knowledge base.
What's inside
Knowledge base at a glance.
Source
Coverage
Records
Webix snippets
All public snippets, post-processed with SC view names
1,447
Webix documentation
Full API reference + guides (v6.4.6)
17,020 pages
SoftCreator Proto-UI
All webix.protoUI(...) extensions and mixins
59 extensions
Database
SQLite + FTS5 indexes
~44 MB
Under the hood
Four views of the same system.
Switch between flow, sequence, schema, and timeline to see how requests travel, what's stored,
and how the project evolved.
flowchart TD
U[Developer prompt in Cursor]
A[AI agent]
M[MCP server]
K[(Knowledge base)]
R[Adapted code with citations]
U --> A
A -- search/get --> M
M -- FTS5 query --> K
K -- ranked rows --> M
M -- JSON response --> A
A --> R
classDef u fill:#e8f5e9,stroke:#4caf50,color:#2c3e2e;
classDef a fill:#fff8e1,stroke:#f57f17,color:#2c3e2e;
classDef m fill:#e3f2fd,stroke:#1976d2,color:#2c3e2e;
classDef k fill:#bcffb4,stroke:#008807,color:#2c3e2e;
classDef r fill:#dcf5dc,stroke:#4caf50,color:#2c3e2e;
class U u;
class A a;
class M m;
class K k;
class R r;
Request flow — what happens when a developer types a prompt.
sequenceDiagram
autonumber
participant Dev as Developer
participant IDE as Cursor
participant MCP as Webix MCP
participant KB as Knowledge base
Dev->>IDE: Build a datatable with frozen columns
IDE->>MCP: search_webix_snippets
MCP->>KB: FTS5 query
KB-->>MCP: ranked matches
MCP-->>IDE: snippets + SC names
IDE->>MCP: get_softcreator_extension
MCP->>KB: lookup
KB-->>MCP: defaults, mixins, members
MCP-->>IDE: SC catalog entry
IDE-->>Dev: Adapted SC code with citations
Sequence — typical two-call interaction for a real prompt.
Schema — tables and relationships only. Field-level details live in docs/SCHEMA.md.
flowchart LR
P[Prototype 20 snippets · 2 tools]
W[Full Webix 1,447 snippets · 8 tools]
X[Production split Server + Builder]
S[SoftCreator integration 59 extensions · 11 tools]
P --> W --> X --> S
classDef legacy fill:#fff8e1,stroke:#f57f17,color:#2c3e2e;
classDef prod fill:#dcf5dc,stroke:#4caf50,color:#2c3e2e;
class P legacy;
class W,X,S prod;
Evolution — four phases from proof of concept to production.
SoftCreator-first mapping
Snippets are rewritten before the AI sees them.
Every Webix snippet that uses a control with a SC wrapper is post-processed so that
view:"datatable" becomes view:"scdatatable", and so on. The mapping is
deterministic and applied only at well-known syntactic positions.
flowchart LR
A[Raw snippet from snippet.webix.com] --> B{Webix view has SC wrapper?}
B -- yes --> C[Replace view name with SC equivalent]
B -- no --> D[Keep as-is]
C --> E[Stored in DB]
D --> E
classDef src fill:#fff8e1,stroke:#f57f17,color:#2c3e2e;
classDef rule fill:#e3f2fd,stroke:#1976d2,color:#2c3e2e;
classDef ok fill:#dcf5dc,stroke:#4caf50,color:#2c3e2e;
classDef db fill:#bcffb4,stroke:#008807,color:#2c3e2e;
class A src;
class B rule;
class C,D ok;
class E db;
Mapping flow — applied once at build time; the runtime database holds the SC-shaped result.
Specialized SC controls — scwizard, codeeditor, bpmneditor,
sctimeline, erddesigner and others — remain in the catalog as first-class
extensions but are excluded from the autoreplace map. Webix views without a SC wrapper
(gantt, spreadsheet, kanban, pivot,
scheduler) pass through unchanged.

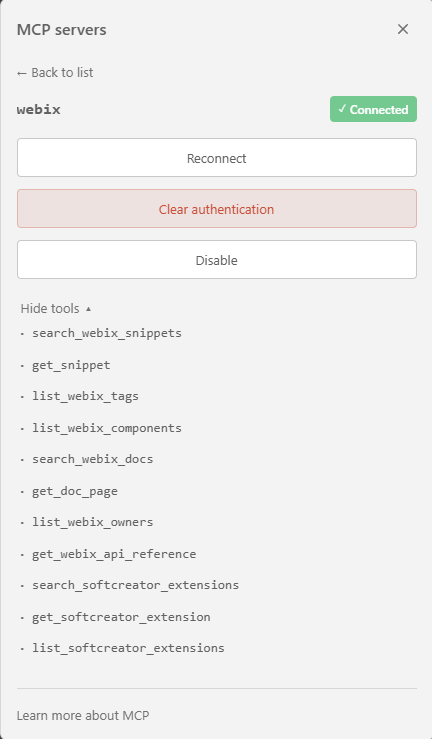

MCP surface
Eleven tools across three domains.
Every tool returns JSON with a source field of 'webix' or 'sc',
so the AI can correctly attribute every citation it produces.
Webix snippets
search_webix_snippets
FTS over title, description, JS, and components. Filter by tag or view.
get_snippet
Full source and metadata for one snippet by URL id.
list_webix_tags
All Webix snippet tags with counts.
list_webix_components
View components present in the corpus, frequencies included.
Webix documentation
search_webix_docs
FTS over title, prose, and code blocks of every doc page.
get_doc_page
Full text + extracted code for one doc page by file name.
list_webix_owners
All Webix entities (views, helpers, modules) with page counts.
get_webix_api_reference
Full API surface for a view, with linked SC extension if any.
SoftCreator catalog
search_softcreator_extensions
Search SC extensions by name, base, mixin, or standalone status.
get_softcreator_extension
Members, defaults, mixins, and full source of one SC extension.
list_softcreator_extensions
Catalog discovery with filters.
Repository
Three packages, two of them production.
The build pipeline and the runtime server are deployed independently. The original prototype is
preserved as a historical reference.
Server/
Production · runtime
FastAPI + MCP streamable HTTP server. Read-only access to the SQLite knowledge base. Eleven tools, OpenAPI 3.1, health endpoint.
Builder/
Production · ETL
Harvests, parses, classifies, transforms, and publishes the knowledge base. Resumable. Runs on demand.
Prototype/
Legacy · do not use
Original 20-snippet proof of concept with two MCP tools. Frozen for historical reference.
